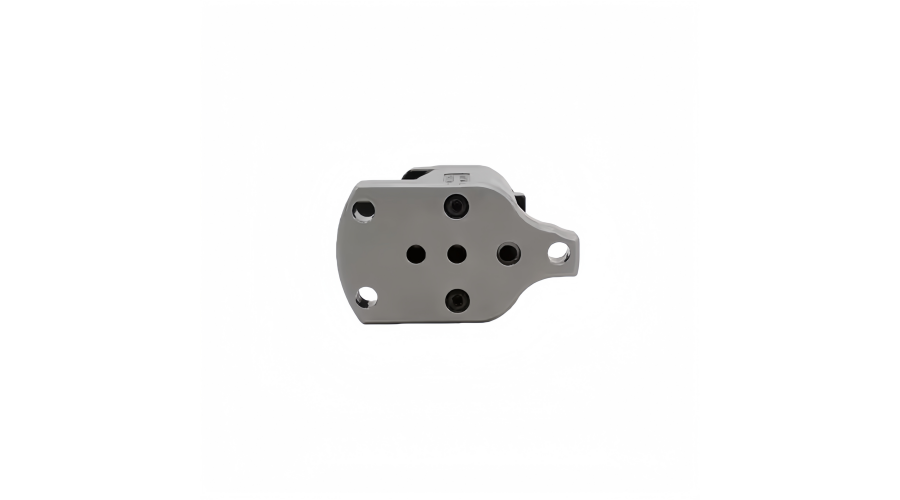

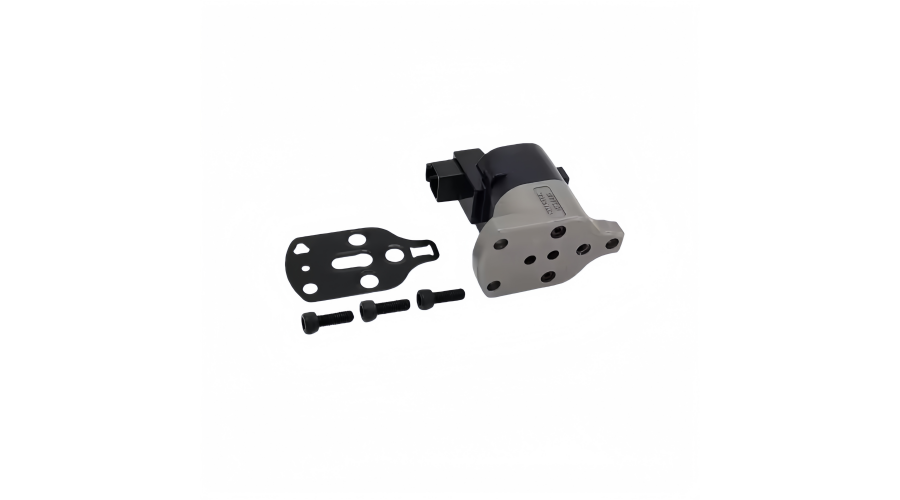

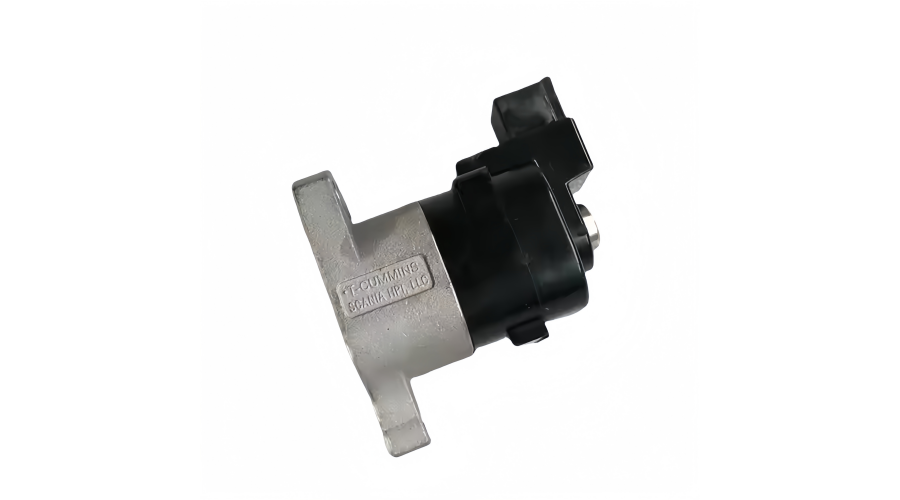

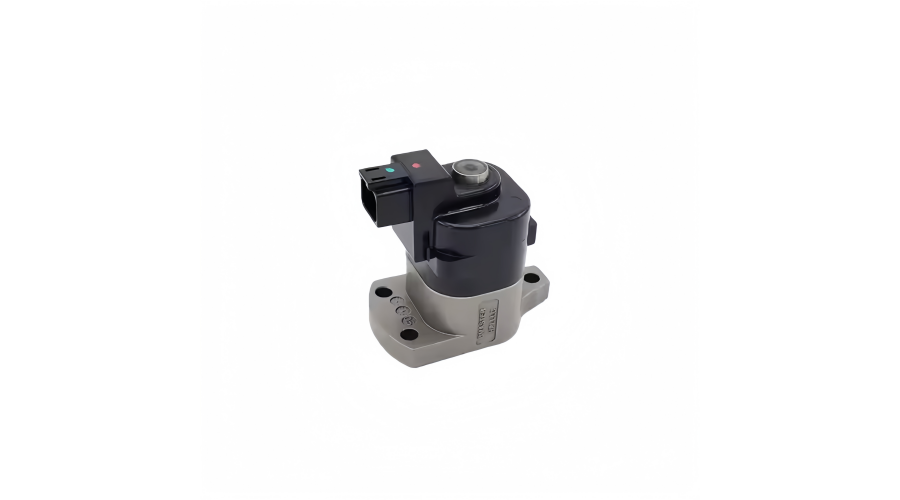

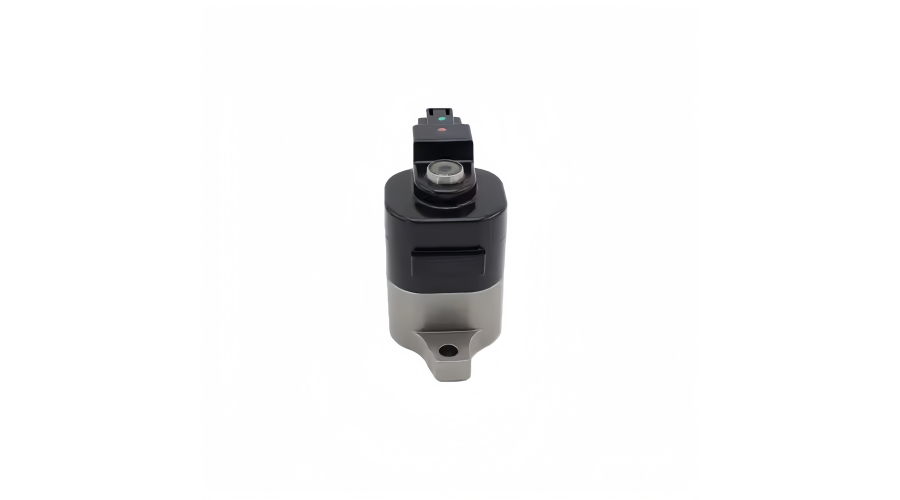

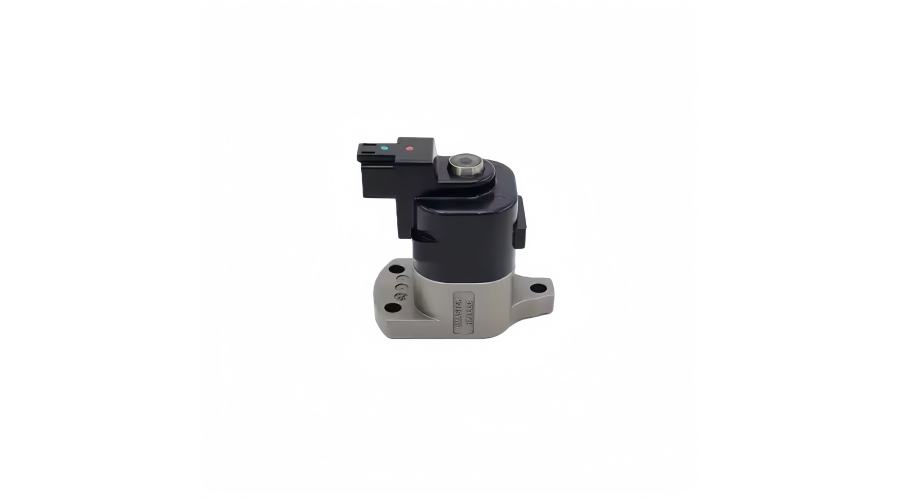

What is Part #4089539?

This is a Fuel Metering Actuator (often called a fuel control actuator or fuel pump actuator). It is a key component of the High-Pressure Common Rail (HPCR) fuel system on Cummins ISX15, QSX15, and X15 engines.

• Primary Function: It is an electronically controlled valve that precisely meters the amount of fuel delivered to the high-pressure fuel pump (the gear pump side). The Engine Control Module (ECM) sends a pulse-width modulated (PWM) signal to this actuator to control fuel flow, which in turn controls engine power and speed.

• Location: It is mounted directly on the fuel transfer pump (also known as the gear pump), which is itself attached to the side of the massive high-pressure fuel pump (the accumulator pump).

Application & Compatibility

Your description is correct. This actuator is used across the 15-liter engine platform:

• ISX15: The legacy on-highway truck engine (pre-2017).

• QSX15: The industrial and off-highway version.

• X15: The current-generation on-highway engine (2017 and newer), encompassing both Efficiency Series (X15 Efficiency) and Performance Series (X15 Performance).

⚠️ CRITICAL COMPATIBILITY NOTE: While the part number 4089539 is very common, it is superseded by newer part numbers. Using the correct, updated part is essential. The most common supersession is:

• 4089539 → **5299709 → **... (and possibly further)

Always check the latest Cummins part number with your serial number or a trusted dealer/parts specialist before purchasing. Using an old or incorrect actuator can cause performance issues or engine derates.

Symptoms of a Failing Actuator (4089539 or its successors)

When this actuator fails or has electrical issues, it will trigger fault codes and noticeable engine problems:

1. Engine Derate / Loss of Power: The most common symptom. The engine will go into a "limp mode" to protect itself.

2. Hard Starting or No Start: Insufficient fuel metering can prevent the build-up of rail pressure needed to start.

3. Engine Misfires and Rough Running: Uneven fuel delivery.

4. Active Fault Codes: The ECM will log codes that point to the actuator circuit.

• Common Cummins Fault Codes:

• FC 3711: Fuel Transfer Pump Actuator Driver - Data Valid But Above Normal Operational Range.

• FC 3712: Fuel Transfer Pump Actuator Driver - Data Valid But Below Normal Operational Range.

• FC 3713 / 3714: Fuel Transfer Pump Actuator - Mechanical Response Issues.

• FC 5591: Fuel Pump Actuator Driver Circuit - Open/Short to Ground.

5. Fuel Leak: Sometimes, the actuator's O-ring seal can fail, causing an external fuel leak at the pump.

Important Considerations for Repair/Replacement

1. Diagnosis First: Don't just throw parts at it. The symptoms can mimic a failing fuel transfer pump itself, wiring harness issues, or even ECM problems. A proper diagnostic with INSITE™ (Cummins software) to check actuator driver commands and circuit tests is crucial.

2. Electrical Connector & Harness: Check the 3-pin Deutsch connector for corrosion, pushed-out pins, or damage. The wiring harness to the actuator is a frequent failure point due to heat and vibration.

3. Transfer Pump Condition: If the gear pump (fuel transfer pump) is worn or failing, replacing just the actuator may be a temporary fix. Often, technicians replace the entire transfer pump assembly, which includes a new actuator.

4. Quality of Part: This is a precision component. While aftermarket options exist, using a genuine Cummins Remanufactured or New part is highly recommended for reliability and to avoid comebacks.

5. Professional Installation: Requires some mechanical skill. Key steps include:

• Depressurizing the fuel system.

• Cleaning the area meticulously to prevent contamination.

• Using new seals/O-rings (usually included).

• Torquing to specification.

Summary

Part #4089539 is a Fuel Metering Actuator vital for controlling fuel on Cummins 15L engines. If you're experiencing derates, power loss, or related fault codes, this component (or its wiring) is a prime suspect.

Next Steps:

1. Read the active fault codes with a diagnostic tool.

2. Inspect the connector and wiring.

3. Verify the latest superseded part number for your specific engine serial number.

4. Consider the condition of the entire fuel transfer pump before deciding on an actuator-only replacement.

Here is a summary of the main parameters for the Cummins Fuel Metering Actuator (Part #4089539 / Successors)
