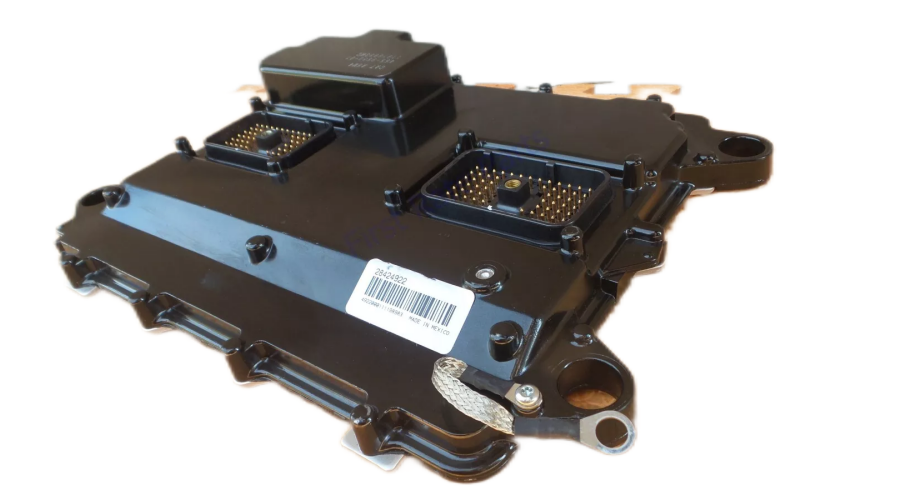

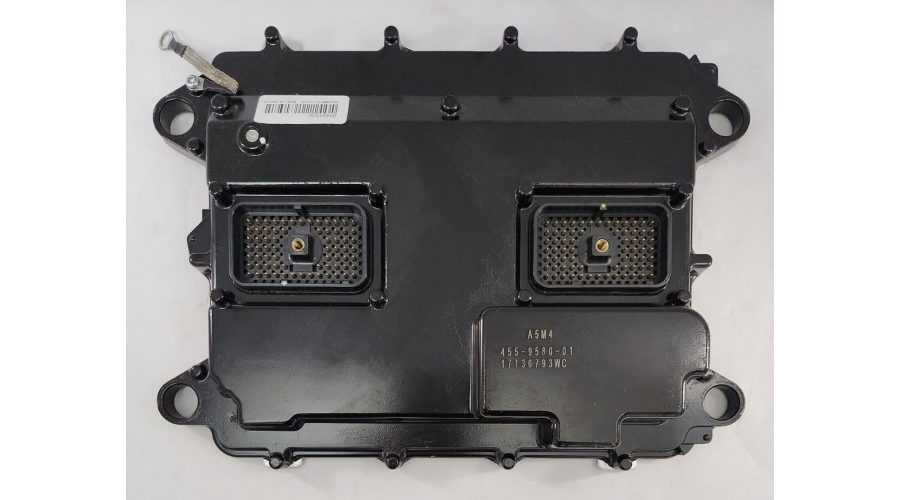

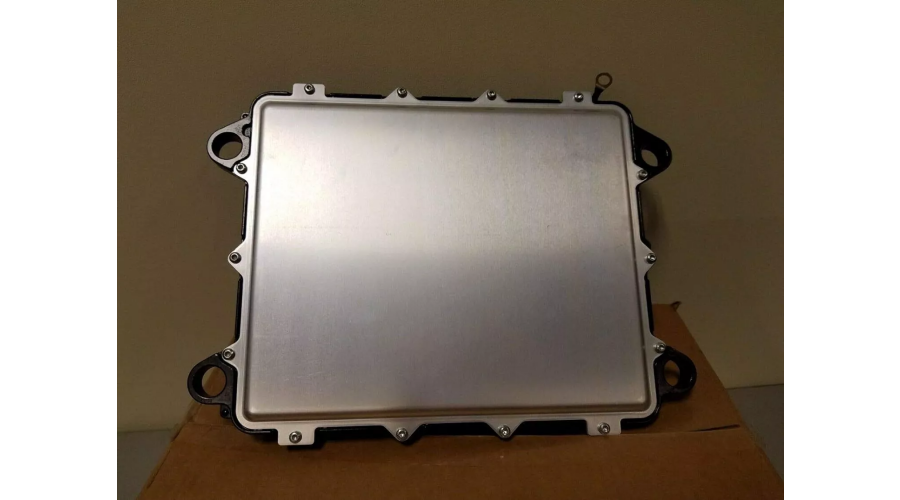

Engine Controller 455-9580 20R-7217 For CAT 725 730 735 740 745 Dump Truck ECM
The replacement of the original ECM must strictly follow the Caterpillar repair specifications,
otherwise it may damage the engine:
1. * * Backup the original ECM parameters**
-Using Cat ® ET (Electronic Technician) prints configuration parameters and records the injector serial number
and calibration code (must be reprogrammed after replacing the injector or ECM).
2. * * Copy the configuration to the new ECM**
-Select 'Copy Configuration/ECM Replacement' → 'Load from ECM' → 'Program ECM' through ET.
If it fails, manual input of parameters is required (some parameters need to be obtained from the factory).
3. * * Precautions for Hardware Replacement**

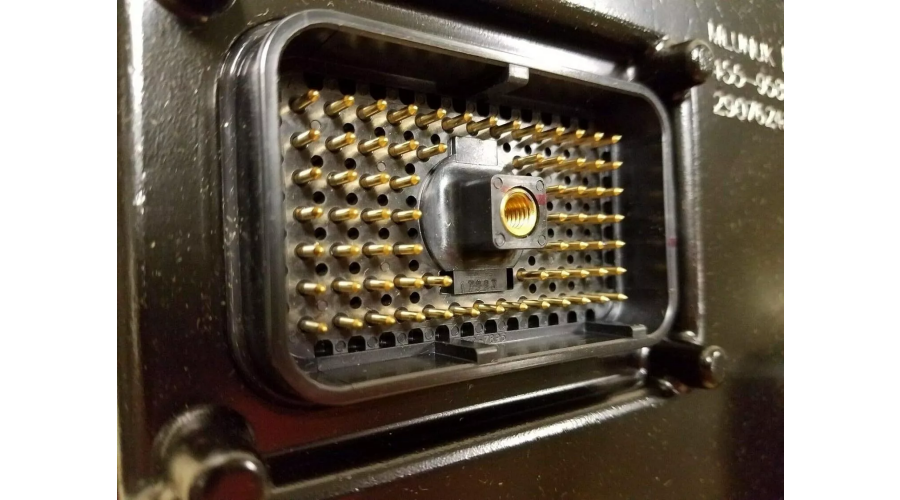

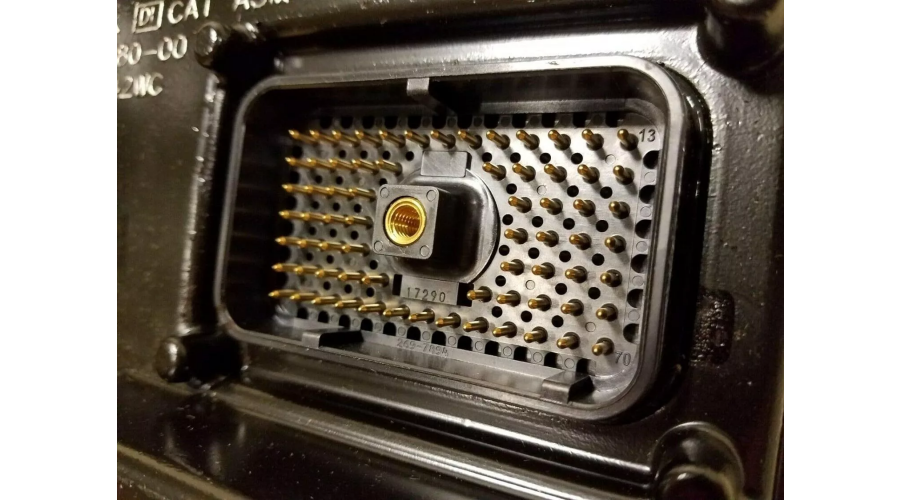

-Disconnect the power supply and J1/P1, J2/P2 connectors;
-Ensure that the grounding strap is securely installed to avoid poor contact caused by vibration;
-The fuel pipeline needs to reserve buffer space to prevent pulling the ECM.
4. * * Software and Calibration**
-Install the latest flash file (version errors can cause engine damage);
-Calibrate the fuel injection timing and check for diagnostic codes (such as CID 0600 hydraulic oil temperature sensor abnormality).
---
### ⚠ ** 4、 Usage and maintenance suggestions**
1. * * Regular diagnosis**
-Using Cat ® ET or Messenger reads the fault code (such as CID 0246 CAN bus abnormality for MID 082)
and promptly cleans the sensor dirt.
2. Environmental and oil requirements**
-Use clean diesel with a filtration accuracy of ≤ 5 μ m to prevent clogging of precision components;
-The working temperature should be ≤ 26 ℃ to avoid ECM component aging caused by high temperature.
3. * * Preventive maintenance**
-Calibrate rail pressure sensors and flow meters every six months;
-Check the waterproof sealing of the wiring harness, especially in high humidity environments such as mines and ships.
4. * * Fault response**
-Symptoms of ECM failure: sudden power drop, shaking and stalling, black smoke emission.
-Emergency plan: Immediately shut down the machine, check the power supply and grounding;
