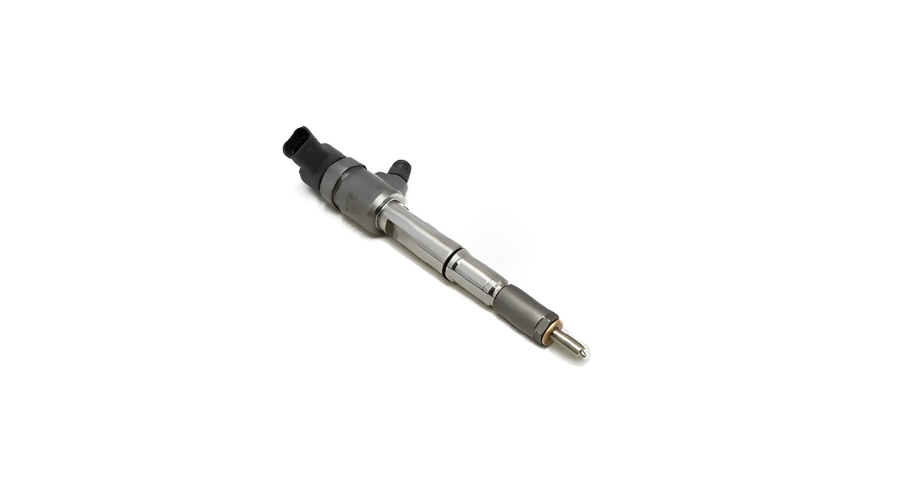

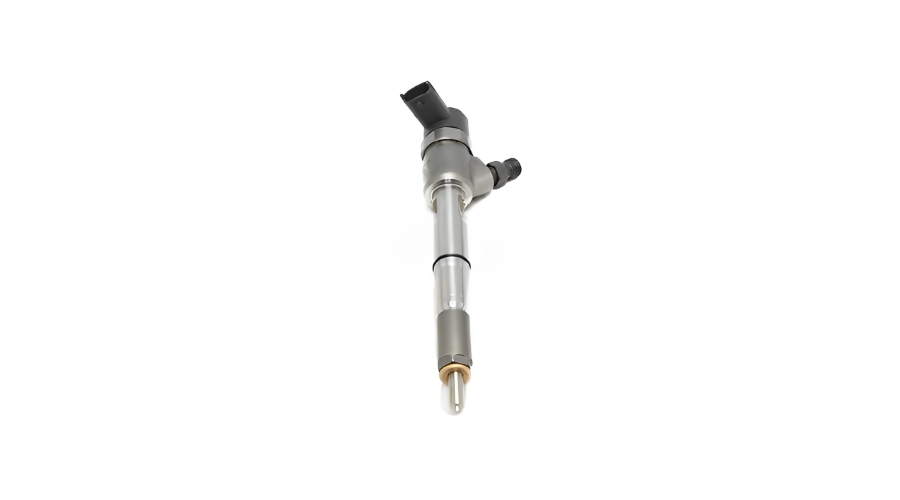

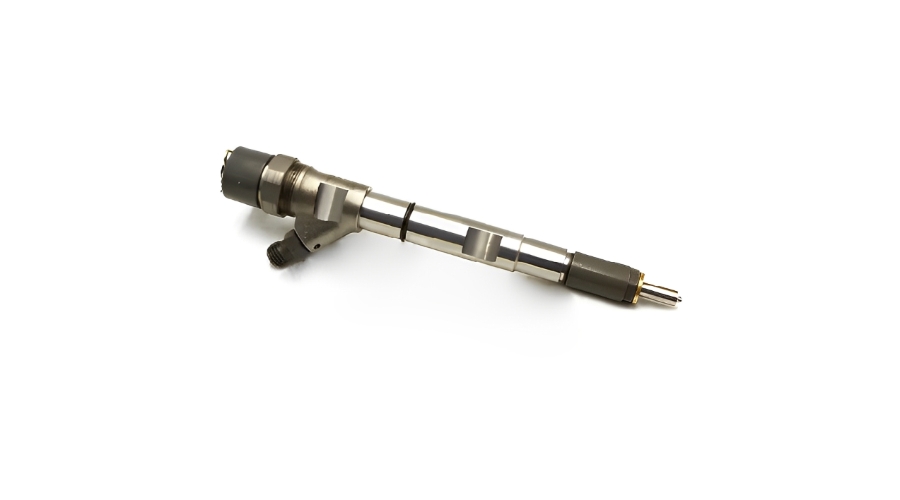

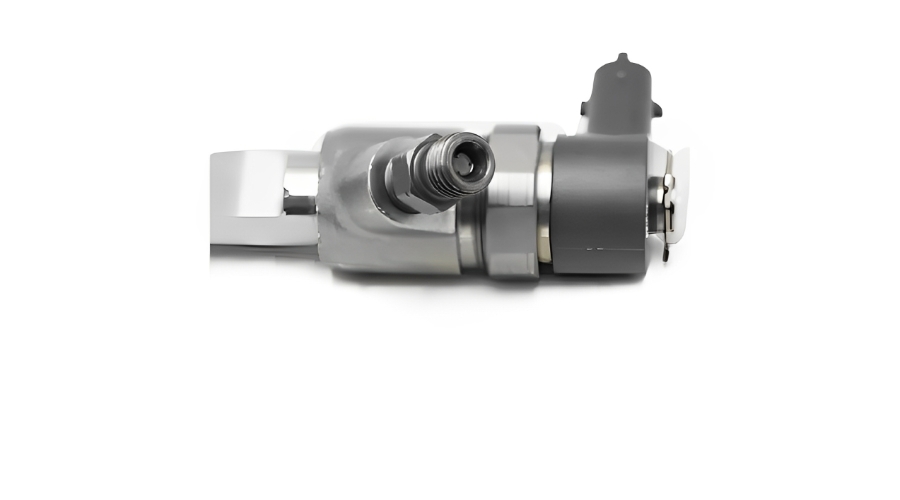

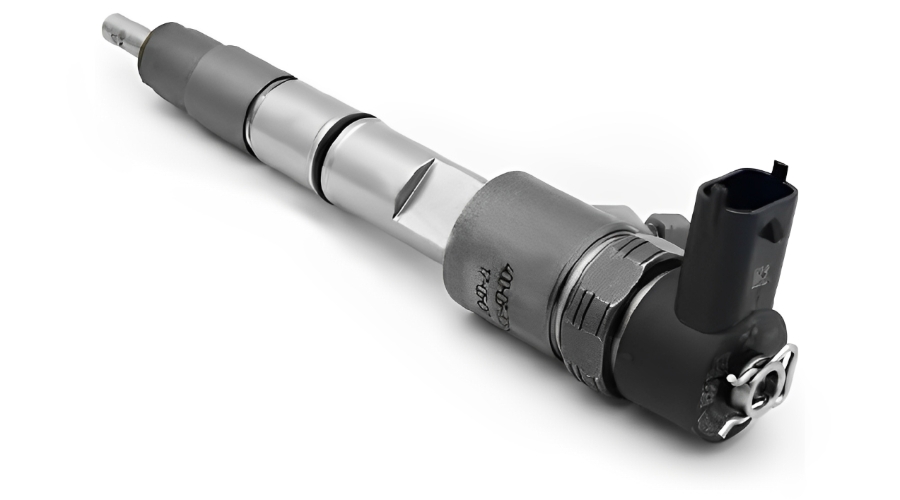

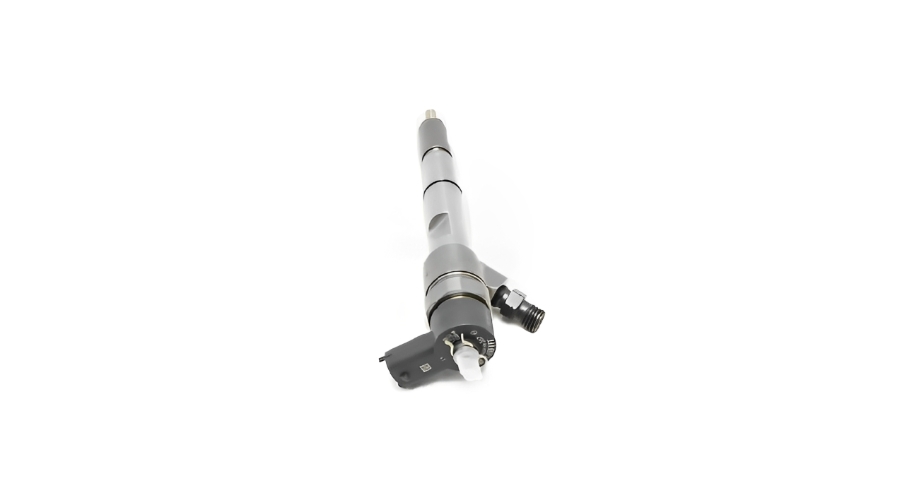

Part Number: 0445110367 (Bosch)
Type: Diesel fuel injector (solenoid or piezoelectric, depending on application)
Compatible Vehicles: Used in several European diesel engines, including some models from Volkswagen (VW), Audi, Skoda, and Seat with 1.6 TDI, 2.0 TDI, or similar engines.
Injection System: Common Rail Direct Injection (CRDI)
The Bosch diesel fuel injector (0445110367) is a Common Rail solenoid-type injector, designed for high-pressure direct fuel injection in modern diesel engines. Below is a detailed breakdown of its structure and key components:
1. Main Structural Components of Bosch 0445110367 Injector
A. Upper Section (Electrical & Control)
Electrical Connector
Solenoid Valve (Actuator)
Valve Spring & Armature
B. Middle Section (Hydraulic Control & Pressure Regulation)
High-Pressure Fuel Inlet
Control Chamber (Pilot Valve Section)
A small chamber where fuel pressure acts on the needle control piston.
When the solenoid opens, pressure drops, allowing the needle to lift.
Ball Valve & Orifice Plate
C. Lower Section (Nozzle & Injection)
Injector Needle (Nozzle Needle)
Nozzle Tip (Orifice Disc)
Contains microscopic holes (e.g., 6–8 holes) for atomized fuel spray.
Made of hardened steel to withstand high pressure and heat.
Tightening Clamp & Sealing Washer
2. How It Works (Brief Operation Principle)
ECU Sends Signal → Solenoid energizes, lifting the armature.
Pilot Valve Opens → Pressure drops in the control chamber.
Needle Lifts → High-pressure fuel sprays through the nozzle.
ECU Cuts Signal → Solenoid de-energizes, closing the injector.
3. Key Features of This Injector Design
✔ Solenoid-Driven (not piezoelectric, unlike some newer Bosch injectors).
✔ Multi-Hole Nozzle for better fuel atomization.
✔ Precision-Matched Components for consistent spray pattern.
✔ Integrated Filter (some models) to prevent clogging.
Diesel Fuel Injector Supplier
Rsolid is a professional diesel fuel injector manufacturer provides high quality and durable diesel fuel injector replaements for different brands of engines or produce fuel injector according to your request. If you are looking for diesel fuel injector or OEM engine fuel injector, feel free to contact us.
