Comprehensive Guide to 05234785 Detroit Diesel S60 Series Injector

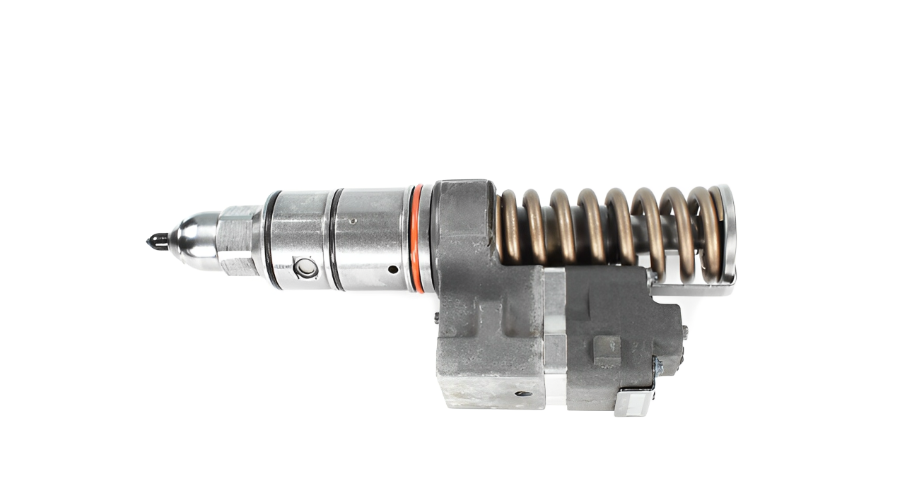

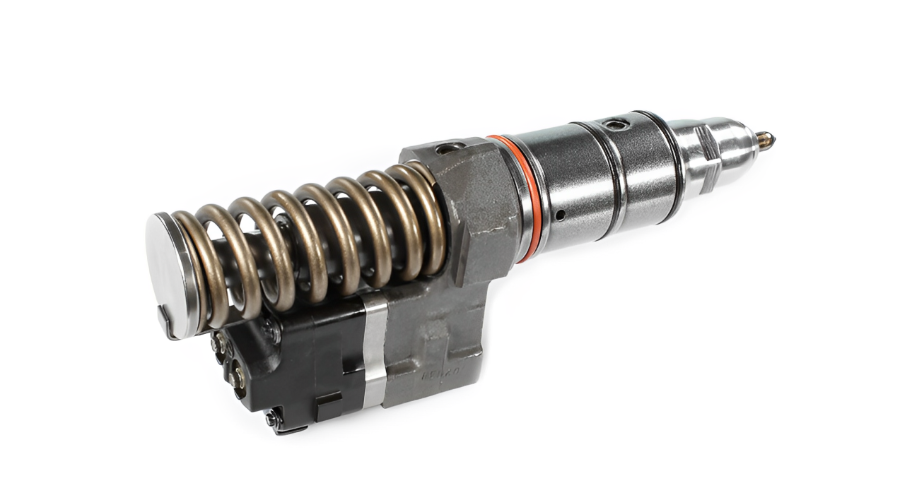

What is 05234785 Detroit Diesel S60 Series Injector?

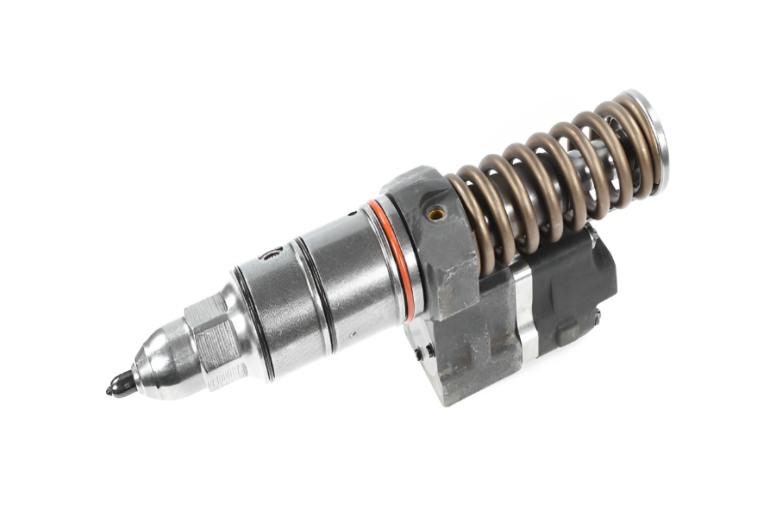

The 05234785 Detroit Diesel S60 Series Injector is a high-performance electronic unit injector (EUI) specifically engineered for the Detroit Diesel Series 60 (S60) heavy-duty diesel engine. This injector is a critical component of the fuel system, responsible for delivering precisely metered, high-pressure fuel directly into the combustion chamber at exact intervals. The 05234785 is an OEM replacement part, typically an N3 electronic unit injector, designed for engines manufactured after December 1, 2003. It features a 9-hole spray tip (nozzle part number 4991753-C2A) and is compatible with 11.1L, 12.7L, and 14L variants of the Series 60 engine. This injector works in conjunction with the Detroit Diesel Electronic Controls (DDEC) system to optimize fuel delivery for maximum power, fuel efficiency, and emissions compliance.

How Does 05234785 Detroit Diesel S60 Series Injector Work?

The 05234785 Detroit Diesel S60 Series Injector operates on the principle of mechanical actuation with electronic control. Unlike common rail systems, the Series 60 engine uses an overhead camshaft to directly actuate the injectors via rocker arms and followers. Inside each injector, a plunger is driven by the camshaft. The DDEC ECU controls a high-speed solenoid valve that determines the precise timing and duration of injection.

The injection cycle consists of four distinct phases:

1. Filling Phase: As the plunger rises, fuel is drawn into the injector body through the supply port.

2. Spill Phase: Fuel circulates freely through the injector while the solenoid is de-energized, preventing pressure buildup.

3. Injection Phase: The ECU energizes the solenoid, closing the spill passage. The plunger continues downward, compressing trapped fuel to extremely high pressure (typically 1,500–2,000 bar), forcing it through the multi-hole nozzle as a finely atomized spray into the cylinder.

4. Pressure Reduction Phase: The solenoid de-energizes, opening the spill passage and abruptly ending injection.

This precise electronic control allows for optimized combustion timing, reduced emissions, and improved fuel economy.

Advantages of 05234785 Detroit Diesel S60 Series Injector

Choosing the 05234785 Detroit Diesel S60 Series Injector for your Series 60 engine offers several key benefits:

• Precise Electronic Control: The DDEC system enables microsecond-level injection timing adjustments, resulting in optimized combustion, reduced smoke, and lower fuel consumption across all operating conditions.

• High Injection Pressure: Capable of generating pressures up to 2,000 bar, this injector ensures superior fuel atomization, leading to cleaner combustion, reduced soot, and lower particulate emissions.

• Durability: Built to withstand the extreme pressures and thermal stresses of heavy-duty trucking, the 05234785 injector features hardened internal components and high-quality seals for extended service life.

• Improved Cold Start Performance: The electronic control allows for precise pilot injection strategies, enhancing cold starting and reducing white smoke during warm-up.

• Direct Fit Compatibility: As an OEM-grade replacement, this injector matches original specifications for Series 60 engines, simplifying installation and ensuring proper integration with the DDEC system.

Application of 05234785 Detroit Diesel S60 Series Injector

The 05234785 Detroit Diesel S60 Series Injector is specifically designed for Detroit Diesel Series 60 engines across a wide range of heavy-duty applications. Common applications include:

• Class 8 Heavy-Duty Trucks: Widely used in Freightliner, Western Star, and other trucks equipped with the Series 60 engine for long-haul, regional, and vocational operations.

• Motorcoaches and Buses: Applied in luxury coaches and transit buses where reliability and fuel efficiency are essential for passenger transport.

• Construction and Mining Equipment: Used in off-highway equipment such as excavators, wheel loaders, and haul trucks powered by Series 60 engines.

• Industrial Power Units: Found in generator sets, pumps, and compressors that rely on the Series 60 for continuous operation.

• Marine Applications: Used in marine propulsion and auxiliary engines based on the Series 60 platform.

Specifications (Types) of 05234785 Detroit Diesel S60 Series Injector

The 05234785 Detroit Diesel S60 Series Injector is an electronic unit injector (EUI) from the N3 series. Key specifications include:

• Injector Type: Electronic Unit Injector (EUI), mechanically actuated, electronically controlled.

• Nozzle Configuration: 9-hole spray tip (part number 4991753-C2A) for optimized spray pattern and atomization.

• Maximum Injection Pressure: Up to 2,000 bar (29,000 psi), depending on engine calibration.

• Control: Detroit Diesel Electronic Controls (DDEC) system with high-speed solenoid valve.

• Compatibility: Detroit Diesel Series 60 engines (11.1L, 12.7L, 14L) manufactured after December 1, 2003.

• Interchangeable OEM Numbers: 5234785, 5234785R, EX634785, F00E200211.

• Installation: Requires precise torque and calibration; replacement of injector cups and seals recommended.

• Common Failures: Solenoid failure, nozzle wear, plunger scoring, seal leakage; symptoms include rough idle, misfire, loss of power, excessive smoke, and increased fuel consumption.
