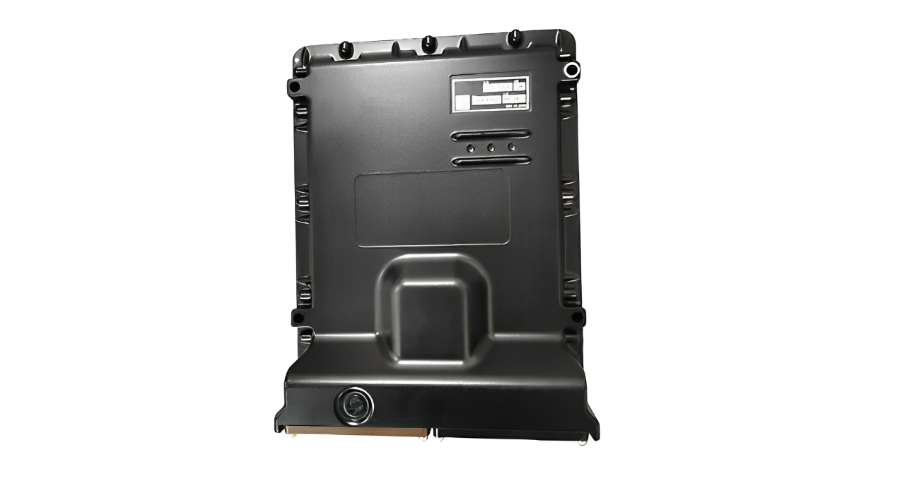

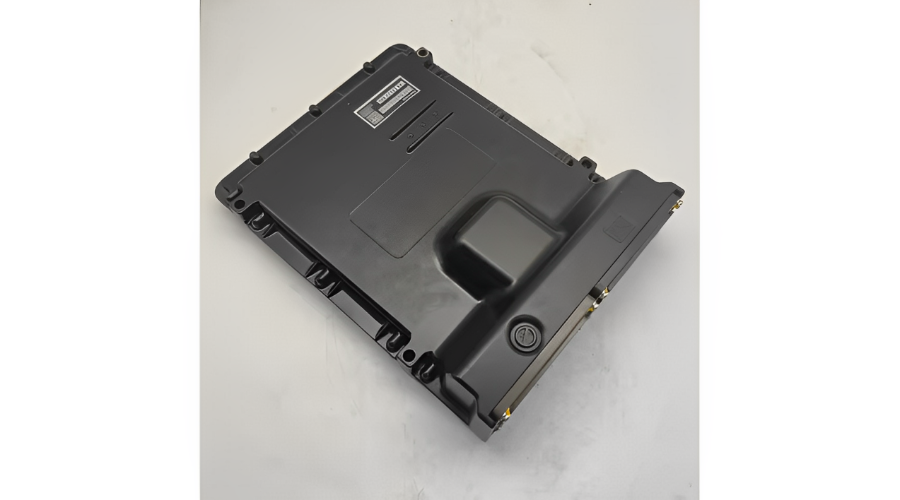

The 309-5710 Controller Unit is an essential electronic component used in Caterpillar 336D2 and 320D2 excavators. This controller plays a critical role in managing various machine functions, including engine performance, hydraulic system controls, and monitoring systems.
Key Features:
Part Number: 309-5710
Compatible Models: Caterpillar 320D2, 336D2
Function: Controls and monitors machine operations, ensuring optimal performance and diagnostics.
OEM Replacement: Designed to meet Caterpillar specifications for reliability.
Common Issues & Symptoms of Failure:
Machine not starting or erratic behavior
Hydraulic system malfunctions
Error codes or warning lights on the display
Loss of power or poor performance
Replacement & Troubleshooting:
Ensure proper voltage and connections before replacement.
Use Cat ET (Electronic Technician) software for diagnostics.
Cross-check with serial number to confirm compatibility.
Usage and maintenance suggestions
1. Regular diagnosis
-Using Cat ® ET or Messenger reads the fault code (such as CID 0246 CAN bus abnormality for MID 082)
and promptly cleans the sensor dirt.
2. Environmental and oil requirements
-Use clean diesel with a filtration accuracy of ≤ 5 μ m to prevent clogging of precision components;
-The working temperature should be ≤ 26 ℃ to avoid ECM component aging caused by high temperature.
3. Preventive maintenance
-Calibrate rail pressure sensors and flow meters every six months;
-Check the waterproof sealing of the wiring harness, especially in high humidity environments such as mines and ships.
4. Fault response
-Symptoms of ECM failure: sudden power drop, shaking and stalling, black smoke emission.
-Emergency plan: Immediately shut down the machine, check the power supply and grounding;
The 309-5710 ECM controls and monitors essential functions in Caterpillar excavators, including:
Engine Management (fuel injection, RPM control, emissions compliance)
Hydraulic System Control (pump regulation, valve operation, pressure monitoring)
Machine Diagnostics & Alerts (error codes, sensor feedback, fault detection)
Operator Interface Integration (communicates with the display for warnings & performance data)
Safety & Performance Optimization (prevents overheating, overloading, and improper operation)
2. Compatible Caterpillar Machines
This ECM is primarily used in the following Caterpillar excavator models:
320D2 (Serial Numbers: D2F001-UP, D2T001-UP)
320D2 GC (Economy variant)
323D2 (Some variants)
336D2 (Serial Numbers: D2N001-UP, D2P001-UP)
